Shanghai ENJUE Machinery Equipment Co., Ltd yog ib qho ntawm cov tuam ntxhab thiab cov muag khoom ntawm Orange Peel Grab thoob hauv Suav teb. Yog hais tias koj yuav mus yuav kev cai txiv kab ntxwv Peel Grab thoob hauv Suav teb, txais tos kom tau txais cov ntaub ntawv ntau ntxiv los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
Product Description
Lub txiv kab ntxwv tev rub yog cov cuab yeej siv tau zoo tsim los nqa thiab hloov cov khoom siv ntau. Nws yog sib sau ua ke los ntawm ib lub thoob chav tsev, ib qho kev nthuav qhia bar, sab sauv thiab sab kev txhawb nqa beams, ib tug pulley thaiv, thiab plaub hlau ropes. Lub thoob chav tsev yog tsim los ntawm ib tug xov tooj ntawm sib npaug zos shells -feem ntau rau rau yim ntawm lawv- uas ua ke ua ib tug profile zoo li cov ntu ntawm ib tug txiv kab ntxwv, uas yog qhov chaw uas cov khoom tau txais nws lub npe. Qhov kev sib tw no feem ntau yog txuam nrog ntauwd cranes, gantry cranes, nkoj cranes, thiab nkoj unloaders, tag nrho cov uas haum nrog ob lub nruas nruas.
Txhawb txoj hlua thiab kaw hlua
Kev them nyiaj yug Ropes:Plaub hlau hlua nyob rau hauv tag nrho yog siv los ua tus tuav. Ntawm cov no, ob daig los ntawm cov hlua qhia cov cuab yeej-feem ntau hu ua tus qauv sib npaug- uas tau teeb tsa rau ntawm cov kab hluav taws xob sab saud. Ob txoj hlua no hu ua txoj hlua txhawb nqa.
Kaw Ropes:Lwm ob txoj hlua hlua tau raug mob nyob ib ncig ntawm lub rub lub rub los txuas nrog nws. Lawv hu ua cov hlua kaw, thiab ua ke nrog cov hlua txhawb nqa, lawv tswj qhov qhib thiab kaw cov lus tsa suab ntawm qhov rub.
Kev faib tawm ntawm plaub- hlua rub
Raws li tus naj npawb ntawm flaps, grabs poob rau hauv ob pawg: clamshell grabs thiab mechanical txiv kab ntxwv tev grabs.

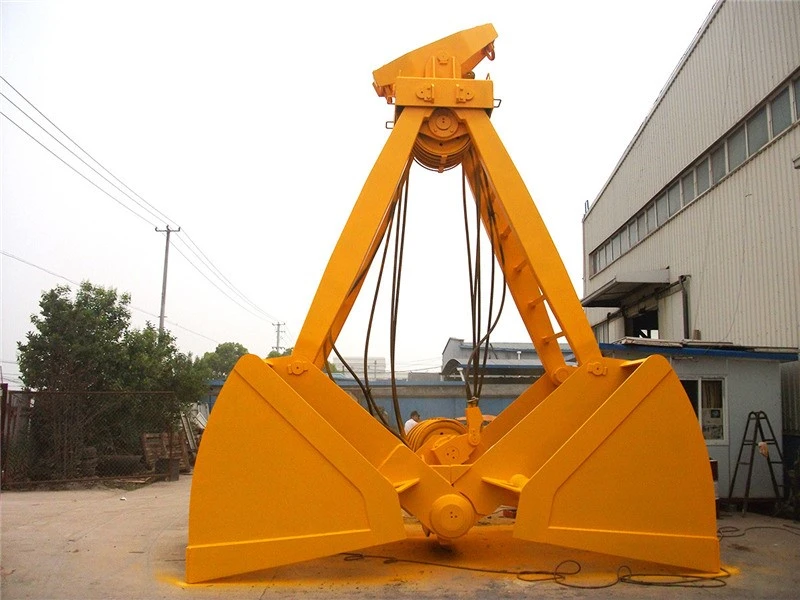

Clamshell Grab:Tsim los rau cov khoom siv dav dav, suav nrog coke, thee, grain, daj xuab zeb, bulk chiv, thiab ntxhia hmoov.
Txiv kab ntxwv Peel Grab:Haum rau cov ntaub ntawv loj lossis tsis zoo li qub, xws li khib nyiab, pob zeb, npua hlau blocks, slag, seem hlau, thiab ntoo.
Daim ntawv thov
Dav siv nyob rau hauv wharves, steel mills, pov tseg incineration kho nroj tsuag, fais fab nroj tsuag, nkoj thiab lwm yam sij hawm.

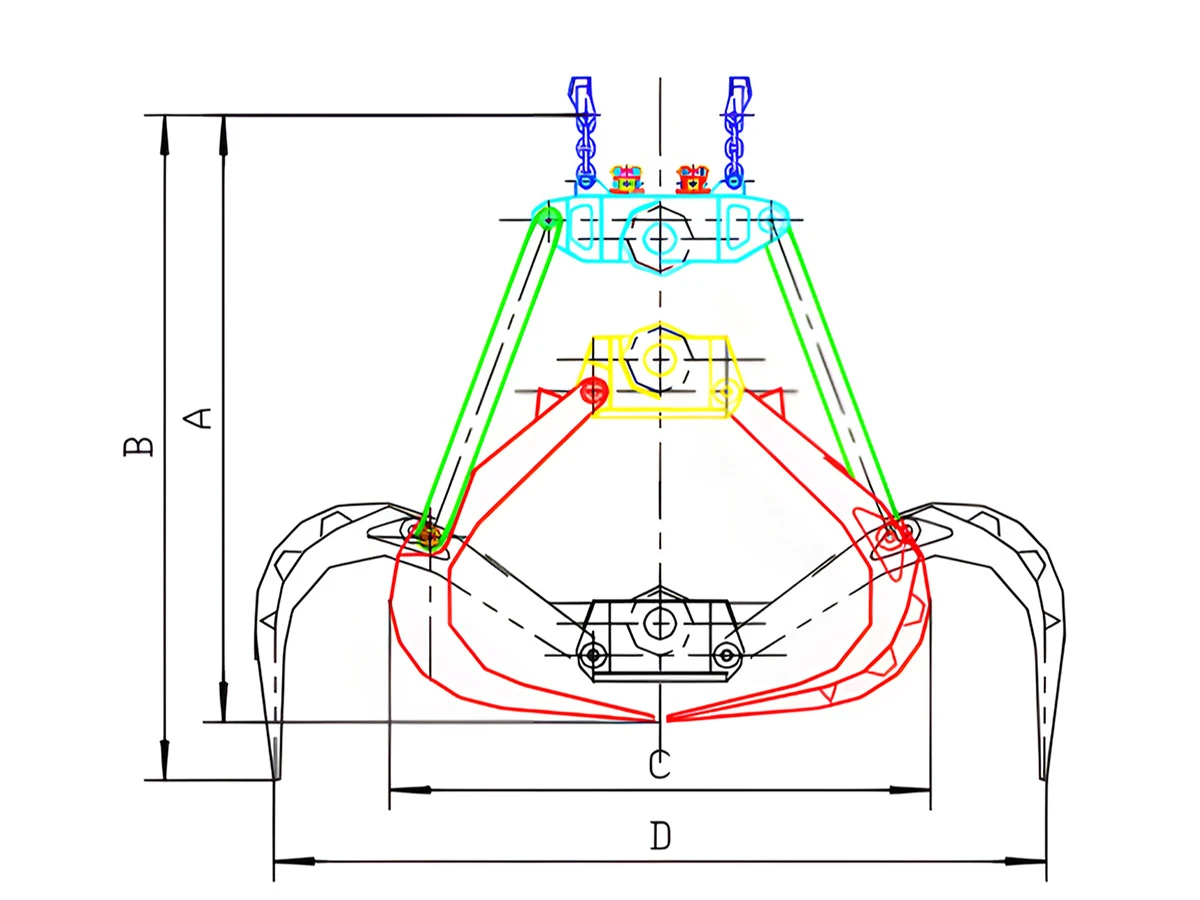

Tsim cov duab kos
Main technical parameters
Qhov Loj (mm)
| Crane Lifting Peev Xwm (t) | A | B | C | D |
|---|---|---|---|---|
| 5 | 2650 | 3230 | 2400 | 3020 |
| 6 | 2690 | 3270 | 2440 | 3360 |
| 8 | 2840 | 3270 | 2660 | 3780 |
| 10 | 3000 | 3500 | 2880 | 4000 |
| 12 | 3050 | 3550 | 3000 | 4180 |
| 16 | 3420 | 4070 | 3400 | 4660 |
| 20 | 3700 | 4320 | 3600 | 4960 |
| 25 | 3920 | 4620 | 3740 | 5280 |
| 30 | 4750 | 5410 | 4200 | 5720 |
